Reset QuattroPod to Default Settings

There are several reasons to reset the QuattroPod to factory settings:

  • You forgot the admin password for the Advanced Settings.

  • You made changes to your network infrastructure, LAN TCP/IP settings, or the SSID credentials of the QuattroPod, and your QuattroPod is no longer accessible.

  • You are having trouble reverting an unintended change on the QuattroPod.

Resetting will restore all settings except the Wi-Fi SSID, the start screen background image, and the firmware version.

Reset using the reset switch

If you do not know the login credentials for the web interface, you can use the reset switch to restore default settings:

  • Using a small "pen", press and hold the reset switch for about 10 seconds.

Reset switch is located on the back of the QuattroPod

  • Release the reset switch when the following message appears.

  • After resetting, you must select the Wi-Fi channel country on the first login to the web interface. For devices in Europe, please select EUROPE. Then enter a new admin password.

Reset via web interface

Using the Advanced Settings feature, you can log in and reset to default settings using any web browser.

Login

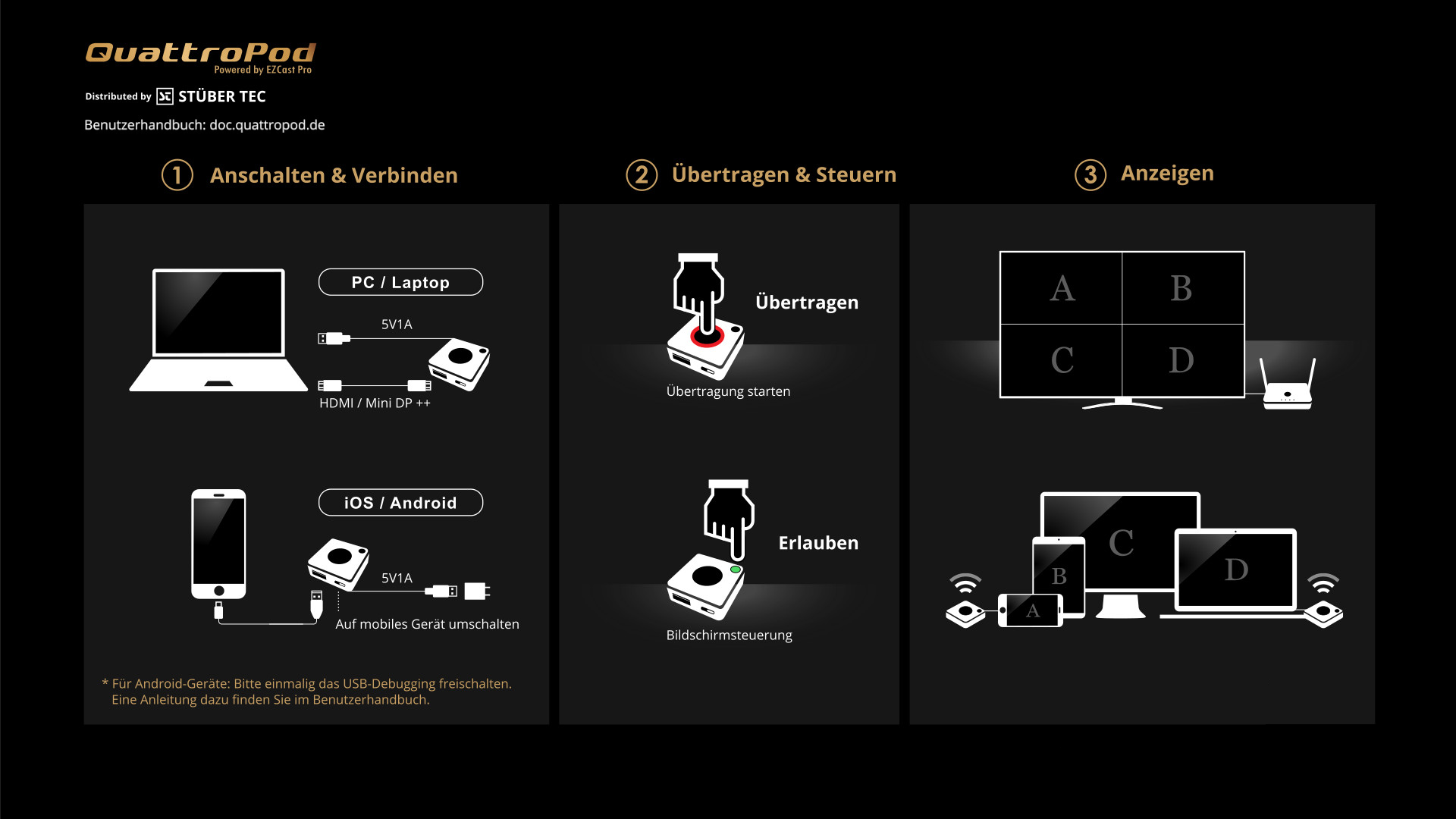

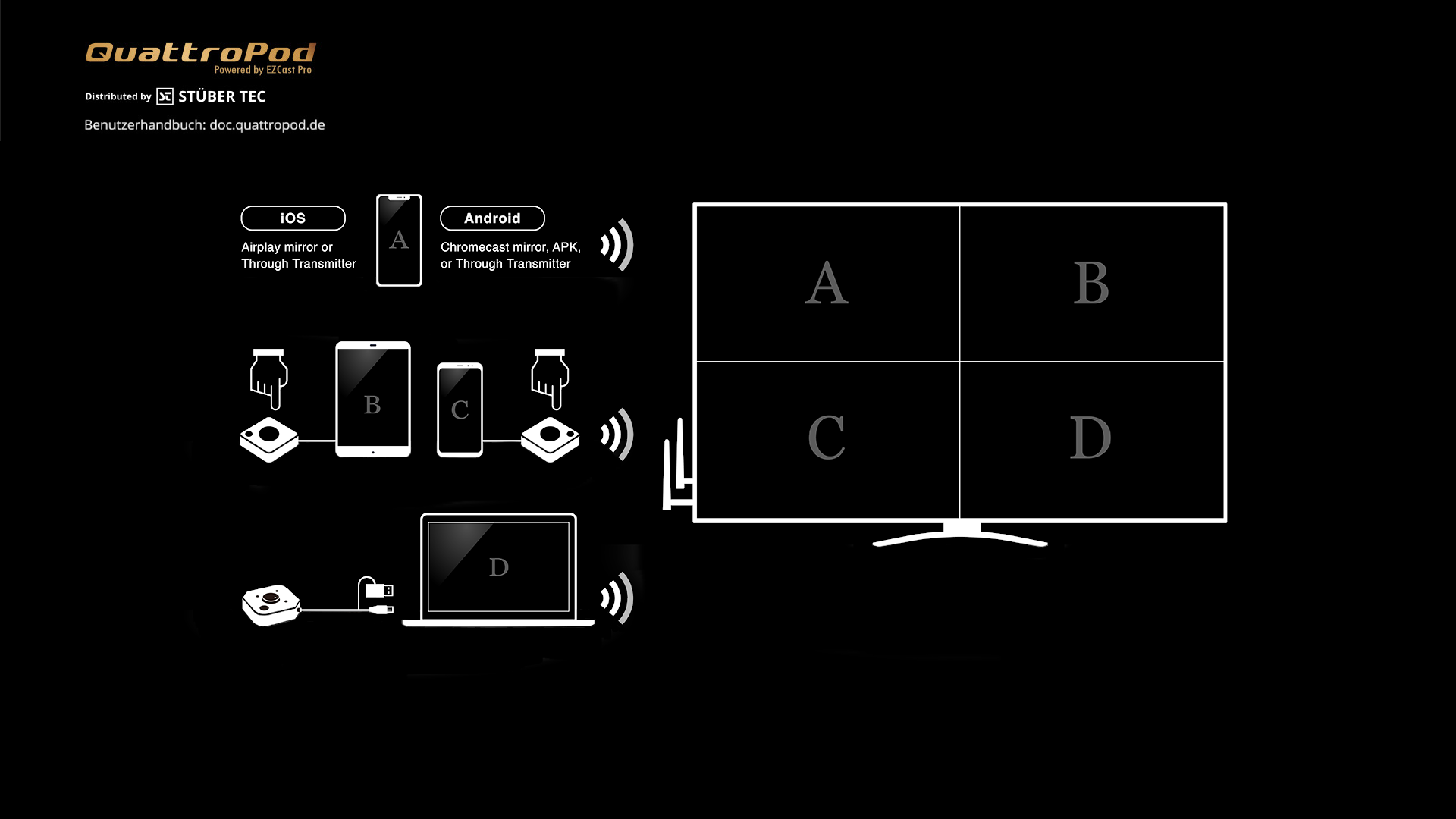

  • Note the IP address shown in the bottom left corner of the start screen.

  • Open your web browser.

  • Click into the address bar of the browser and enter the IP address of the QuattroPod.

  • After pressing Enter, the QuattroPod settings interface will appear. Enter the password. The default is 000000. If this password is not accepted, you must perform a reset using the reset switch.

  • The following features are available. Select the menu item Admin Settings:

  • Execute the function Reset to Default Settings. The receiver will restart:

  • You can choose exactly which devices should be reset. This does not affect the start screen background, the SSID, or the firmware version. Click OK to restart the device:

Reset to default settings

  • After resetting the receiver, you must select the Wi-Fi channel country on the first login to the web interface. For devices in Europe, please select EUROPE. Enter a new admin password and then click Apply and Reboot to restart the device:

Note

If your transmitter cannot be unlocked after resetting, check the receiver and pair the transmitter with the receiver again.

Recommended Settings

The recommended settings below assume that you have already reset the receiver:

Firmware Version: 1.16163.151

Device Management

Developer Options

Admin Settings
